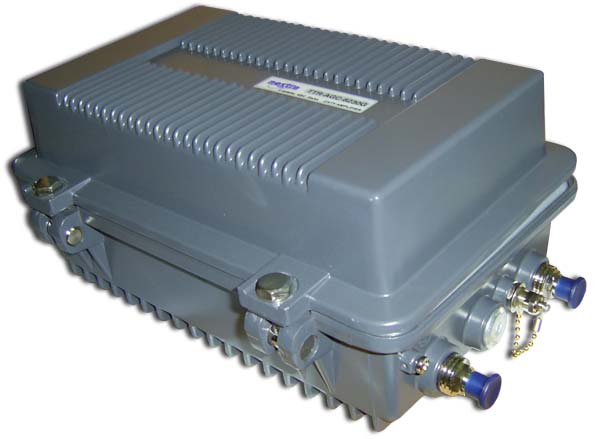

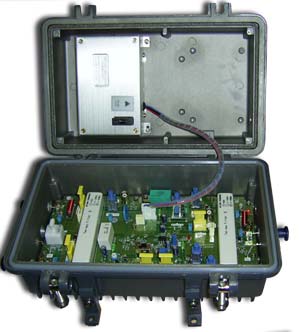

nextraCOM TTR-AGC 8230G - Bi-directional Transmission Trunk Amplifier
	It is applied to extending of bi-directional (or can be reserved) transmission main trunk to signal compensatory use. Pre-build low-noise module, and final-class is power doubler module,with AGC control , all these are Philips and Motorola’s products. One input and two outputs have over-current protection (fuse switch) and output branch or distribution can be switched conveniently. High-reliable switch power and strict anti-thunder character insure steady and continuous work.
Specifications: Forward Transmission Frequency Range MHz (47)87~860 Rated Gain dB 30 Min Fill Gain dB ≥30 Gain Adjustment Range dB 0~15 Slope Adjustment Range dB 0~24 Rated Input Level dBµV 72 Rated Output Level dBµV 102 Flatness in Band dB ≤±1 (with filter) AGC lead frequency MHz 168.25 (or determined by user) AGC characteristic dB Input ±3/ output ±0.3 Noise Figure dB ≤12 Return Loss dB ≥12 Composite Triple Beat (CTB) dB ≥66 Composite Second Order (CSO) dB ≥64 Signal to Noise Ratio dB ≥66 Voltage Stroke KV 5(10/700µS) Backward Transmission Frequency Range MHz 5~65 Rated Gain dB ≥8 Flatness In Band dB ≤±0.75 Gain Adjustment Range dB 0~15 Slope Adjustment Range dB 0~10 Noise Figure dB ≤12 Return Loss dB ≥14 MAX Output Level dBµV ≥110 Carrier to second order intermodulation ratio dB ≥52 Carrier alternate noise ratio dB ≥66 General response Power Voltage (50Hz) V 60V Power consumption VA 30 Dimension mm 325 x 225 x 150

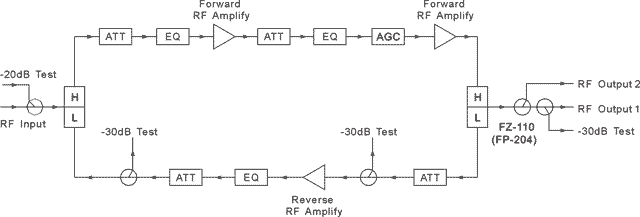

Principle Drawing:
1. Input Test Port:(-20dB) 18. Reverse Input ATT 2. RF Input: 72dBuV 19. Reverse Input Test Port:-20dB 3. Input Bi-directional Filter(or Short Circuit Plug) 20. Power 4. Input ATT(or Short Circuit Plug) 21. Reverse Amplifier Module 5. Equalizer (or Short Circuit Plug) 22. Reverse Output EQ 6. Low-noise Import Pre-module 23. Reverse Output ATT 7. Fixed Attenuator 24. Reverse Output Test Port: -20dB 8. Rear Equalizer 25. Input Over-current Protection Fuse 9. Class Adjustment Circuit 26. +24V Power LED 10. Power Doubler Module 27. W2 Adjust AGC Control Voltage 11. Rear Bi-directional Filter(or Short Plug-in) 28. W1 Hand Adjust 12. Main Output Over-current Protection Fuse 10A/250V 29. MGC-AGC Switch 13. Main Output B 30. W3 Minuteness Adjust 14. Output Test Port I: -30dB 31. Band Pass Filter (BF) 16. Sub-output: -10dBor –4dB   17. Sub-output Over-current Protection Fuse10A/250V (Pull out if no need)
* Specification is subject to change without notice
