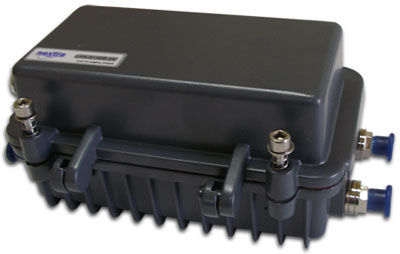

| nextraCOM LHX-8130A-2X - Bi-directional Distribution Amplifier |
 |
Adopt high-output Philips microwave component amplifier, perfect fore-and-aft power doublers and
fore-and-aft independent forward and reverse test ports suitable for bi-directional distribution network.
|
|
 |
|
| Specifications: |
|---|
| Forward Transmission |
| Frequency Range |
MHz |
(47)87~860 |
| Rated Gain |
dB |
24 |
| Min Fill Gain |
dB |
≥24 |
| Rated Input Level |
dBµV |
72 |
| Rated Output Level |
dBµV |
96 |
| Flatness in band |
dB |
±1 |
| Noise Figure |
dB |
≤10 |
| Return Loss |
dB |
≥14 |
| C/CTB(84 PAL-D) |
dB |
≥57 |
| C/CSO (84 PAL-D) |
dB |
≥56 |
| Signal tonoise ratio |
dB |
≥66 |
| Voltage stroke |
KV |
5(10/700µS) |
| Backward Transmission |
| Frequency Range |
MHz |
5~(30)65 |
| Rated Gain |
dB |
18 |
| Flatness in band |
dB |
±1 |
| Noise Figure |
dB |
≤12 |
| Return Loss |
dB |
≥12 |
| MAX Output level |
dBµV |
≥110 |
| Carrier to second order intermodulation ratio |
dB |
≥52 |
| Carrier to Alternative noise ratio |
dB |
≥66 |
| General |
| Power Voltage (50Hz) |
V |
A: 220±15% OR B: 60 |
| Power Consumption |
VA |
10 |
| Dimension |
mm |
235(L)x140(W)x110(H) |
|
|

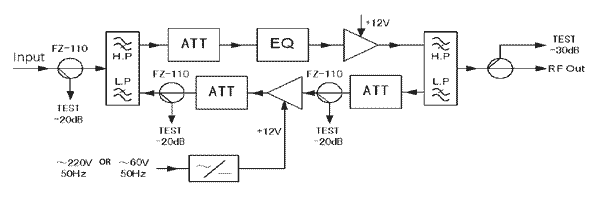

Principle drawing
|
|

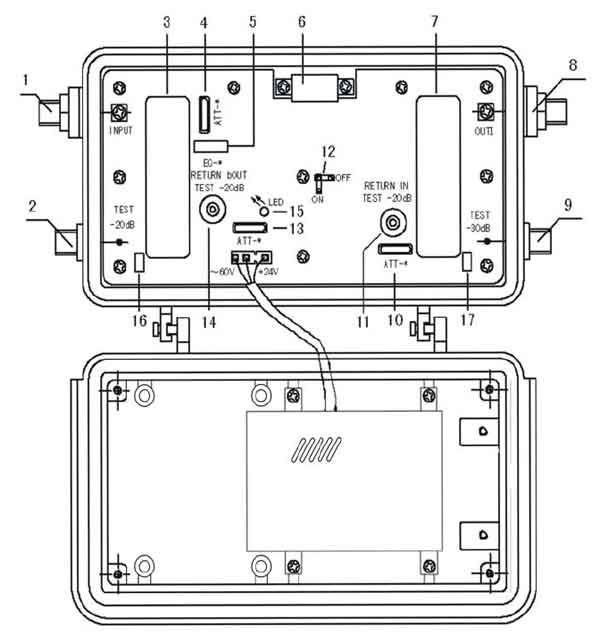

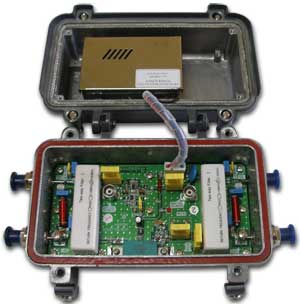

Product structure
|
| 1. RF, AC Input Port |
2. Forward Adjust EQ |
| 3. Forward Adjust ATT |
4. Return Adjust ATT |
| 5. RF Output Port |
6. RF Test Port |
| 7. Power Supply LED |
|
|
|
| * Specification is subject to change without notice |
