• Adopt SOT-115 encapsulation RF module on access, reliable non-linear. Choose low-noise micro-wave push-Pull circuit, small distortion and high S/N ratio.
• Set up EQ and ATT on the right place, more convenient of debugging
• Small power consumption, high reliability, good performance and price ratio.

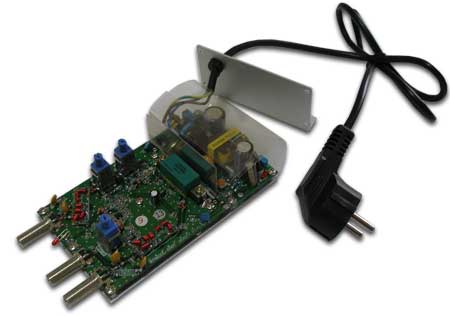

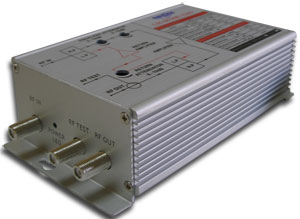

| 1. RF, AC Input Port | 2. Forward Adjust EQ |
| 3. Forward Adjust ATT | 4. Return Adjust ATT |
| 5. RF Output Port | 6. RF Test Port |
| 7. Power Supply LED |
| Specifications: | ||
|---|---|---|
| Forward Transmission | ||
| Frequency Range | MHz | (47)87-860 |
| Rated Gain | dB | 30 |
| Min Fill Gain | dB | ≥30 |
| Rated Input Level | dBµV | 72±2dB |
| Rated Output Level | dBµV | 100 |
| Flatness in band | dB | ±1 |
| Noise Figure | dB | ≤10 |
| Return Loss | dB | ≥12 |
| C/CTB(84 PAL-D) | dB | ≥57 |
| C/CSO (84 PAL-D) | dB | ≥56 |
| Signal to alternative noise ratio | dB | ≥66 |
| Gain stability | dB | ≤±1.0 |
| Voltage stroke | KV | 5 |
| Backward Transmission | ||
| Frequency Range | MHz | 5~(30)65 |
| Rated Gain | dB | 15 |
| Flatness in band | dB | ±1 |
| Noise Figure | dB | ≤12 |
| Return Loss | dB | ≥12 |
| MAX Output level | dBµV | ≥110 |
| Carrier to second order intermodulation ratio | dB | ≥52 |
| Carrier to Alternative noise ratio | dB | ≥66 |
| General | ||
| Power Voltage (50Hz) | V | 16~60V |
| Power Consumption | VA | 10 |
| Dimension | mm | 178(L)x100(W)x55(H) |
